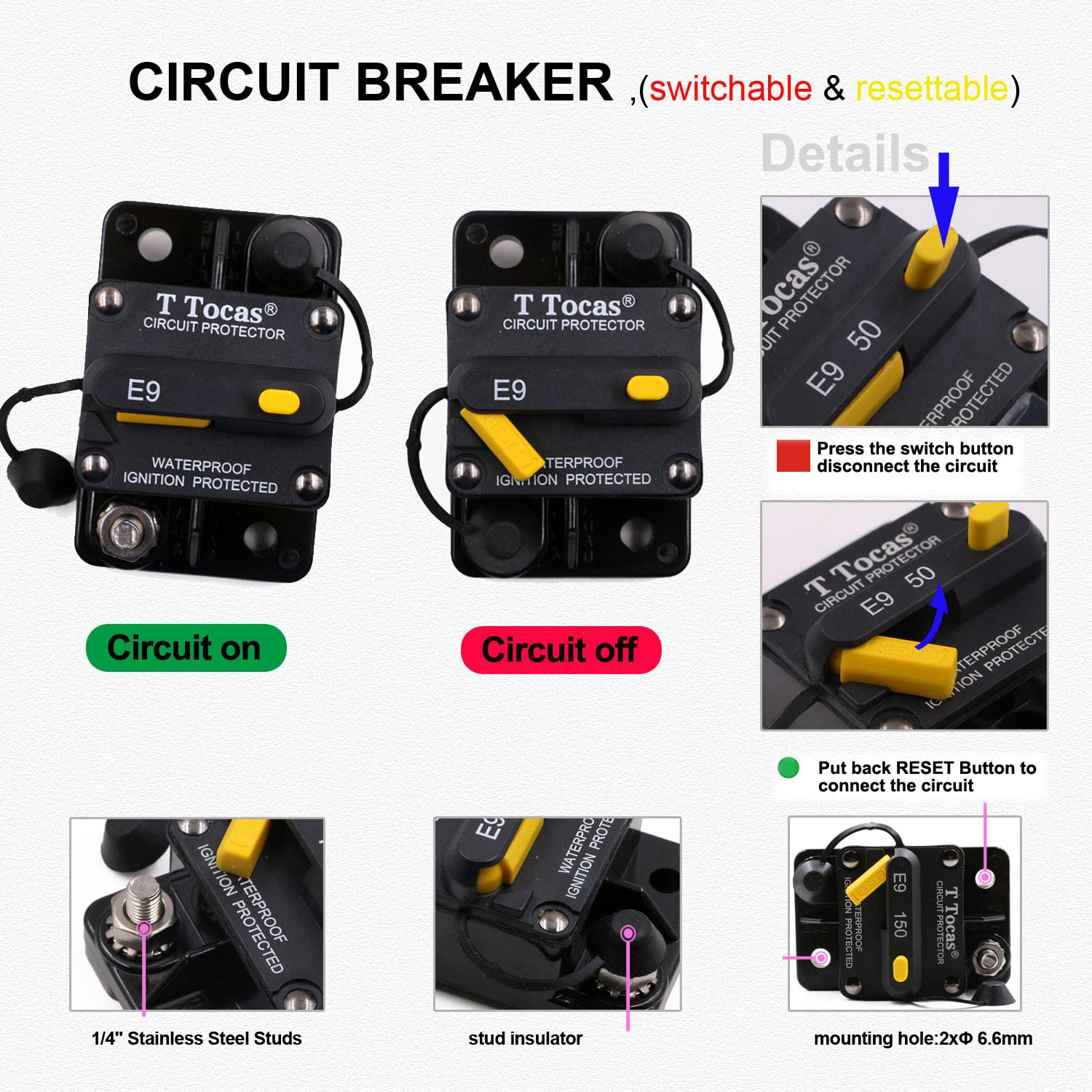

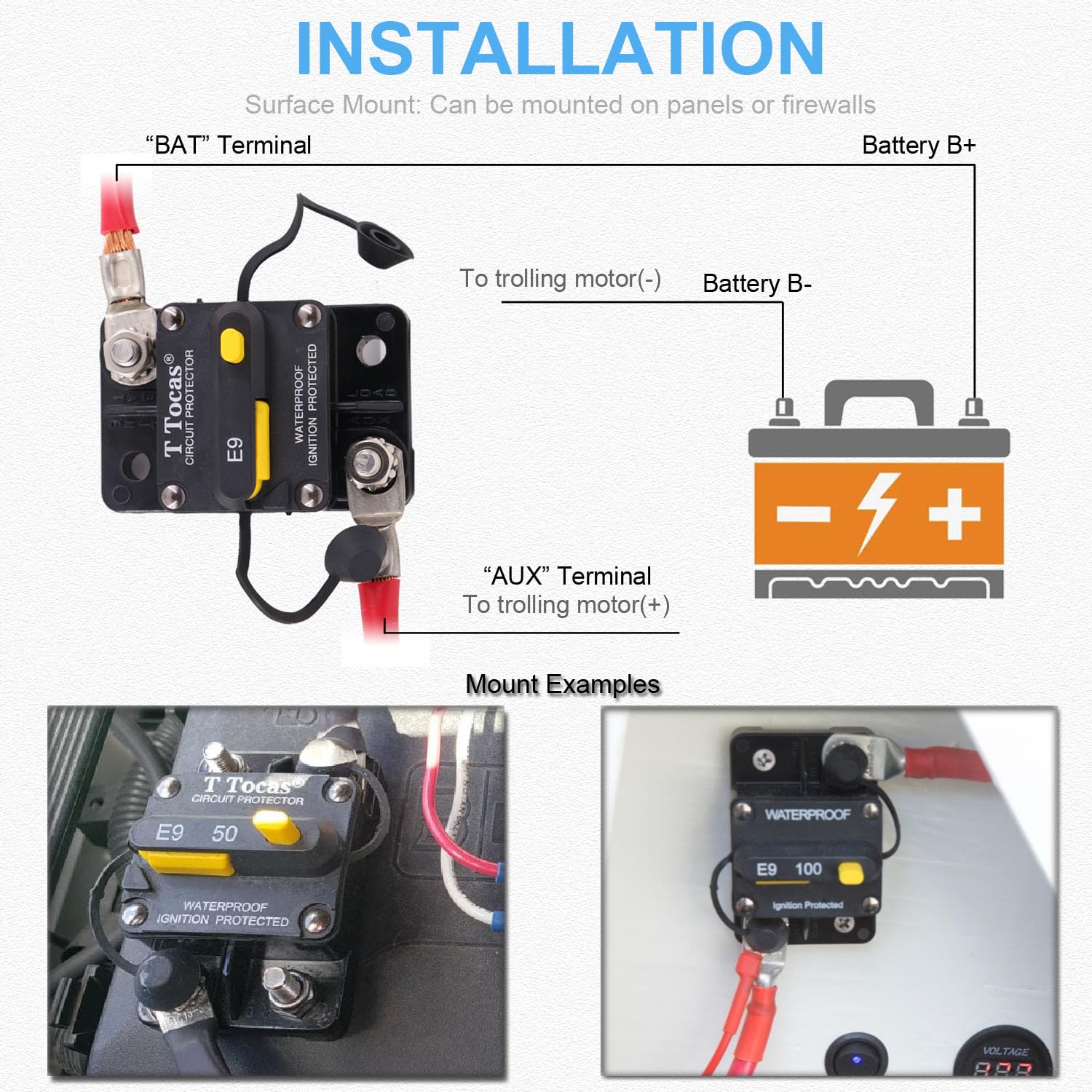

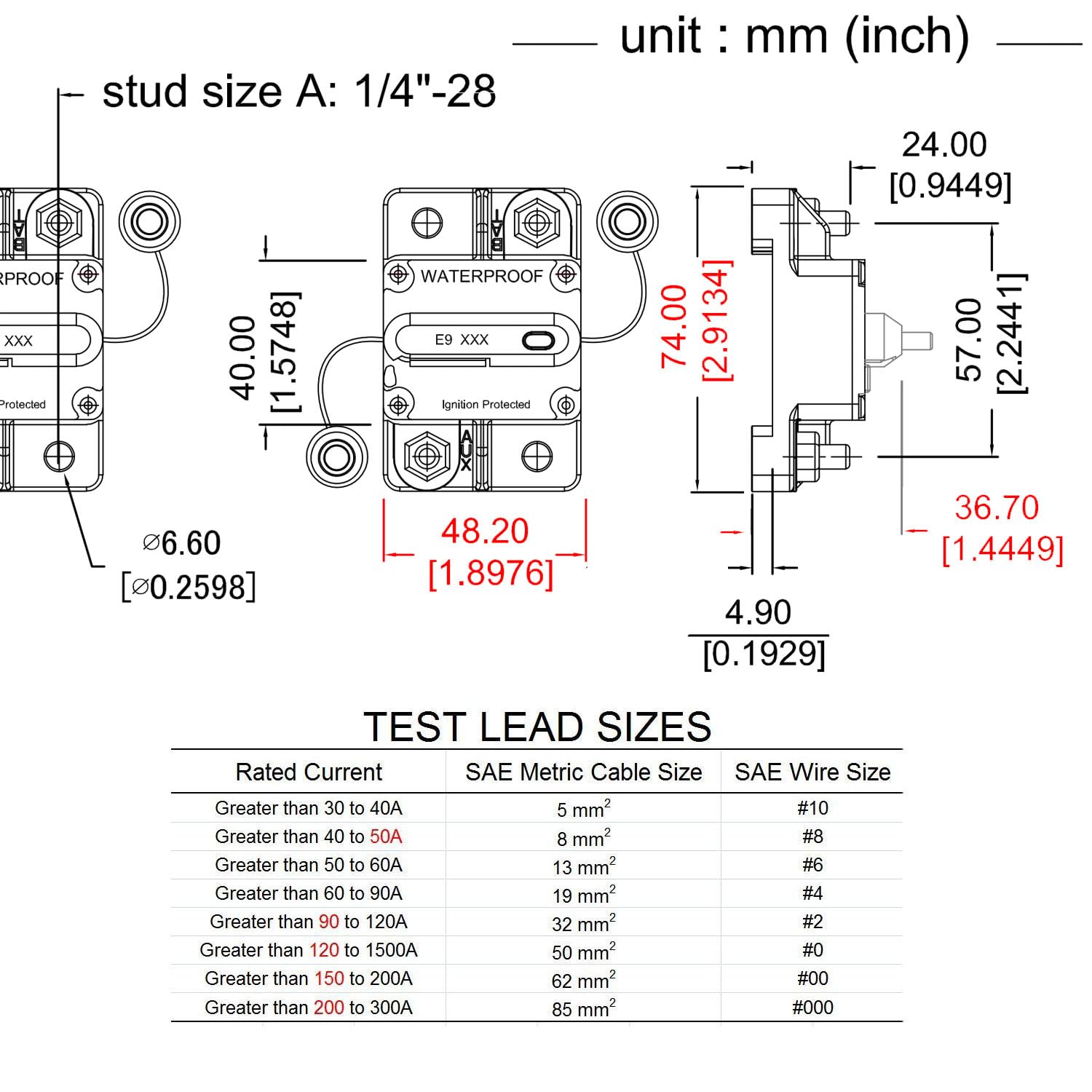

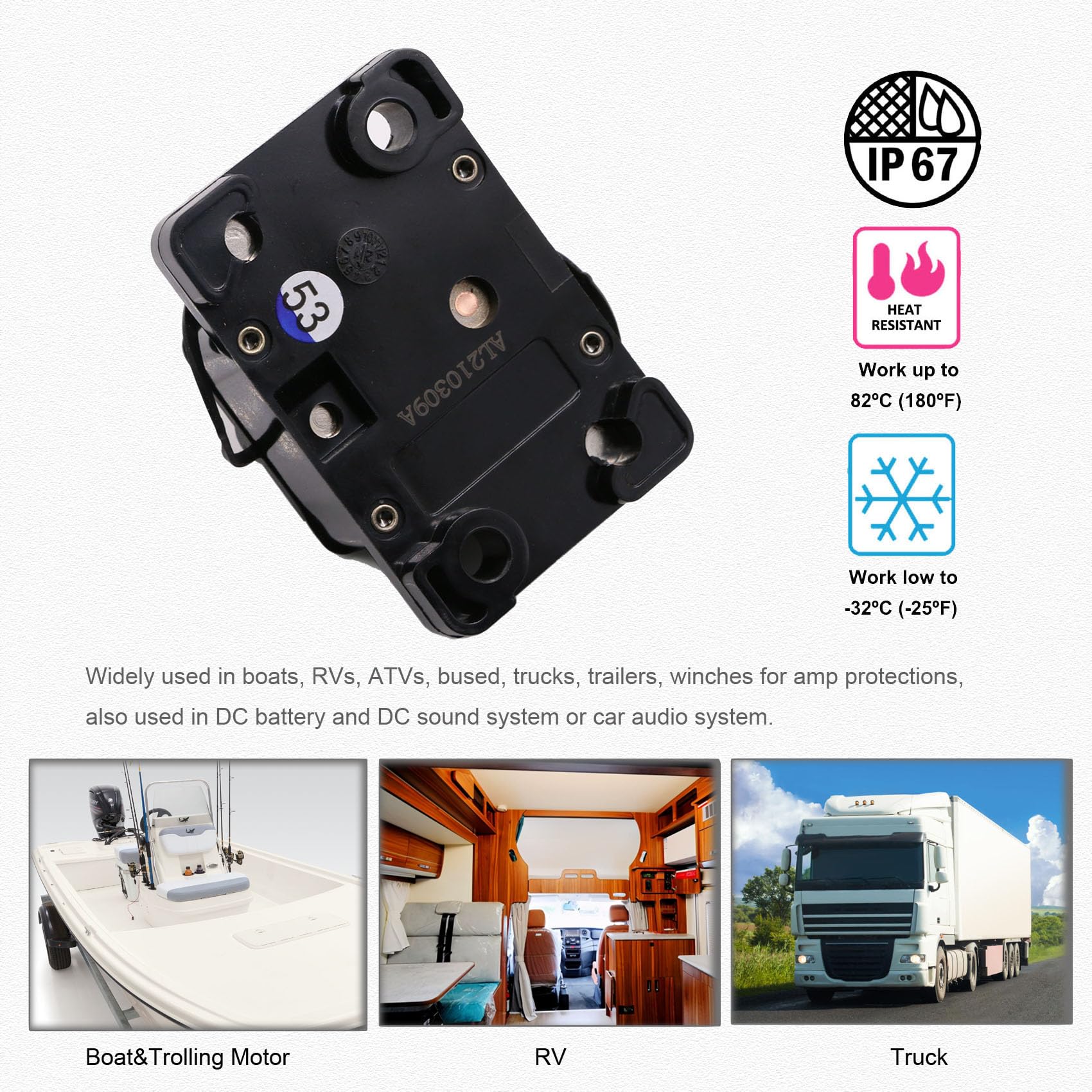

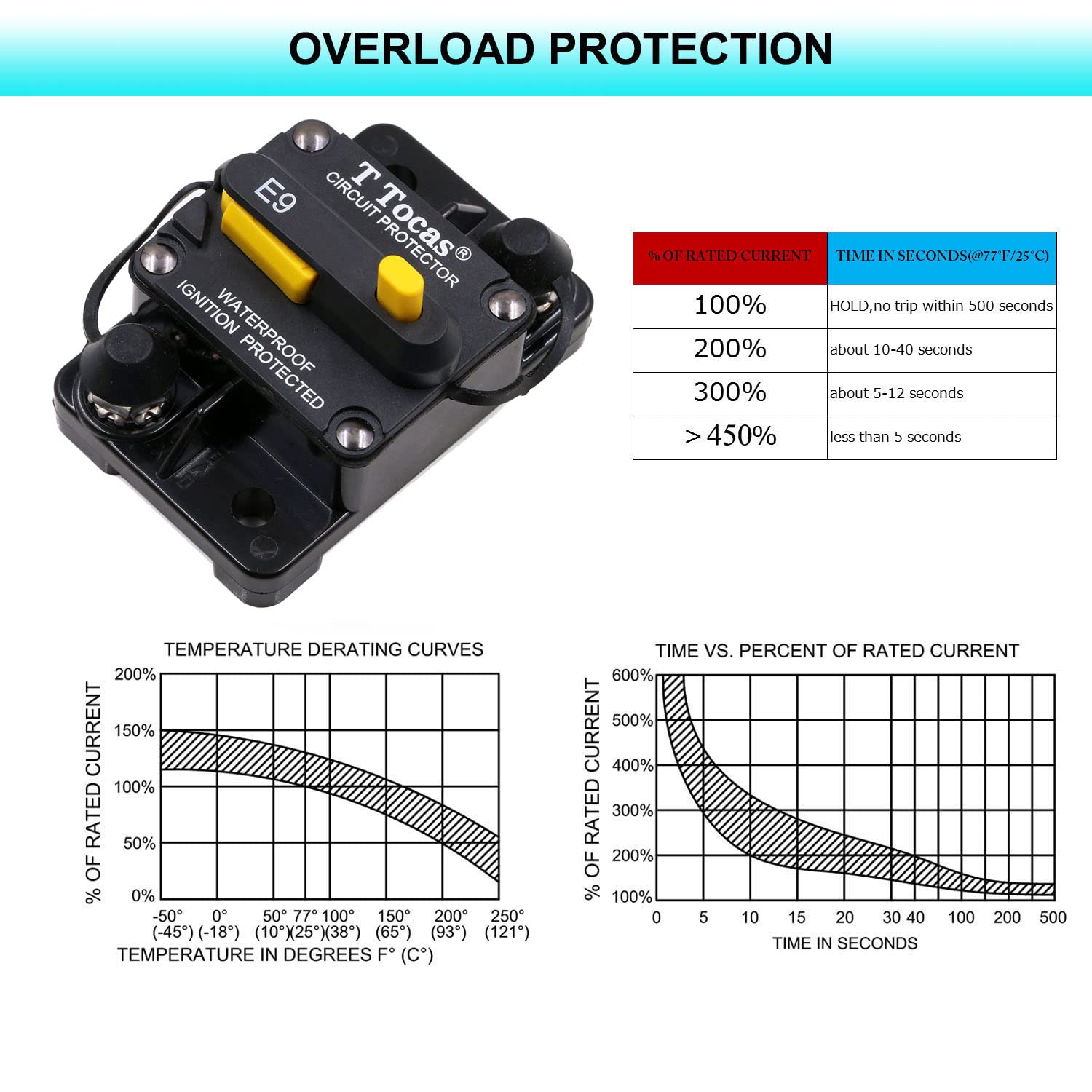

Note: Hold 100% @ 25C° / 77F° ；must trip @ 135% rate current within 60 min, @ 200% rate current within 10~40 seconds;Due to thermal plastic material,not metal,power tools do not torque too much when installing.Please slow down when installed nearly the postion, otherwise it's easy to fracture the product. Voltage 48Vdc Mounting Surface Mount Reset Type T3, Manual Reset (Switchable) Operating Temperature -32ºC (-25ºF) to 82ºC (180ºF) Interrupt Capacity 2,500A @ 14Vdc ;1,500A @ 48Vdc ; Consult Factory Dust and Waterproof IP67 Termination 1/4" Stainless Steel Studs Body UL-rated 94V0 thermoset plastic Dimension Length: 2.913" Width: 1.900" Height: 1.7" Unit: inch Weight 98 g Torque rating 1/4"@100in-lb(11.3Nm), 3/8" 5/16"@150in-lb(17Nm) Switchable & Resettable Stop working Manual reset button: When the product is overloaded or manually disconnected, it can be reset and connected by reset the button At working Switch Button: Similar to switch function, Through the switch button, circuit can be disconnected Easy Installation Surface MountMounting hole:2xΦ 6.6mm Dust and Water proof IP67 Work Temperature -32ºC (-25ºF) to 82ºC (180ºF) ULrated 94V0 thermoset plastic 1/4" Stainless Steel StudsMeet S.A.E. J1625, J1171, UL1500 (Ignition Protected) Previous page L*W*H : 2.9*1.9*1.5inch Next page 1 Detail Size: 2 Overload Protector Other from T Tocas Battery Switch Circuit Breaker Battery Switch 400 Amp Busbar Switchable combines switching and circuit protection into a single device Boat Battery Switches Operation : ON/OFF Power Distribution Block 400Amps high current combiner box, , easy wiring configuration Terminal Size: 5/16"-18 Terminal Size: 3/8" Terminal Size: 3/8"
